IS 2062 Grade Certified
High tensile structural strength, superior weldability & ductility.

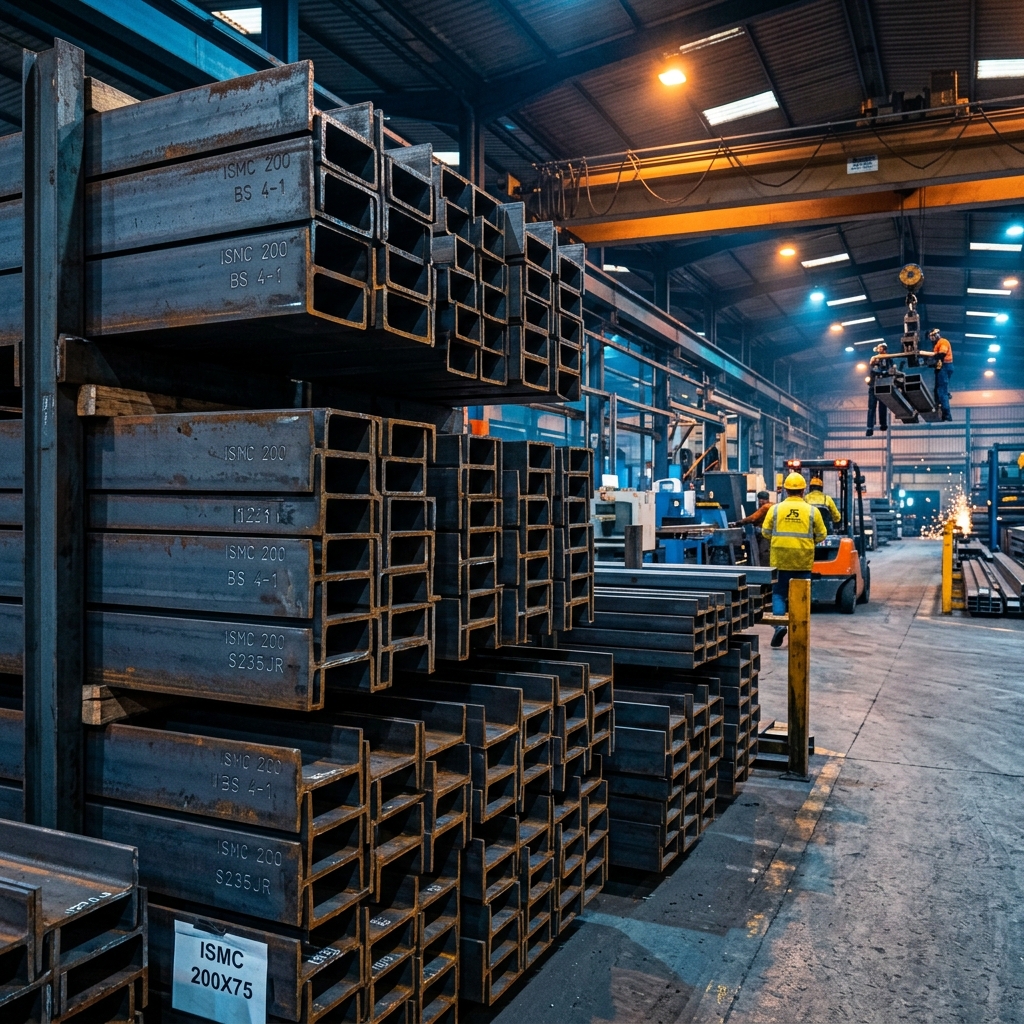

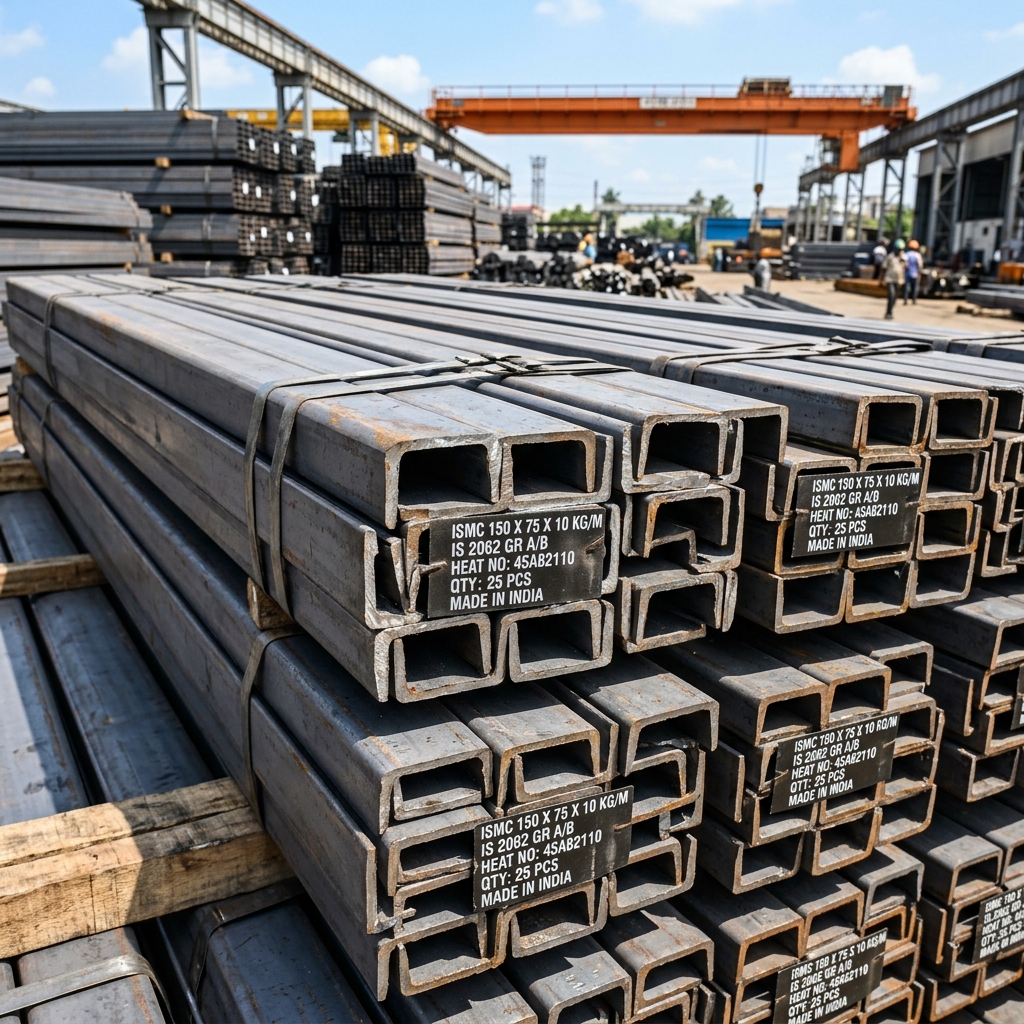

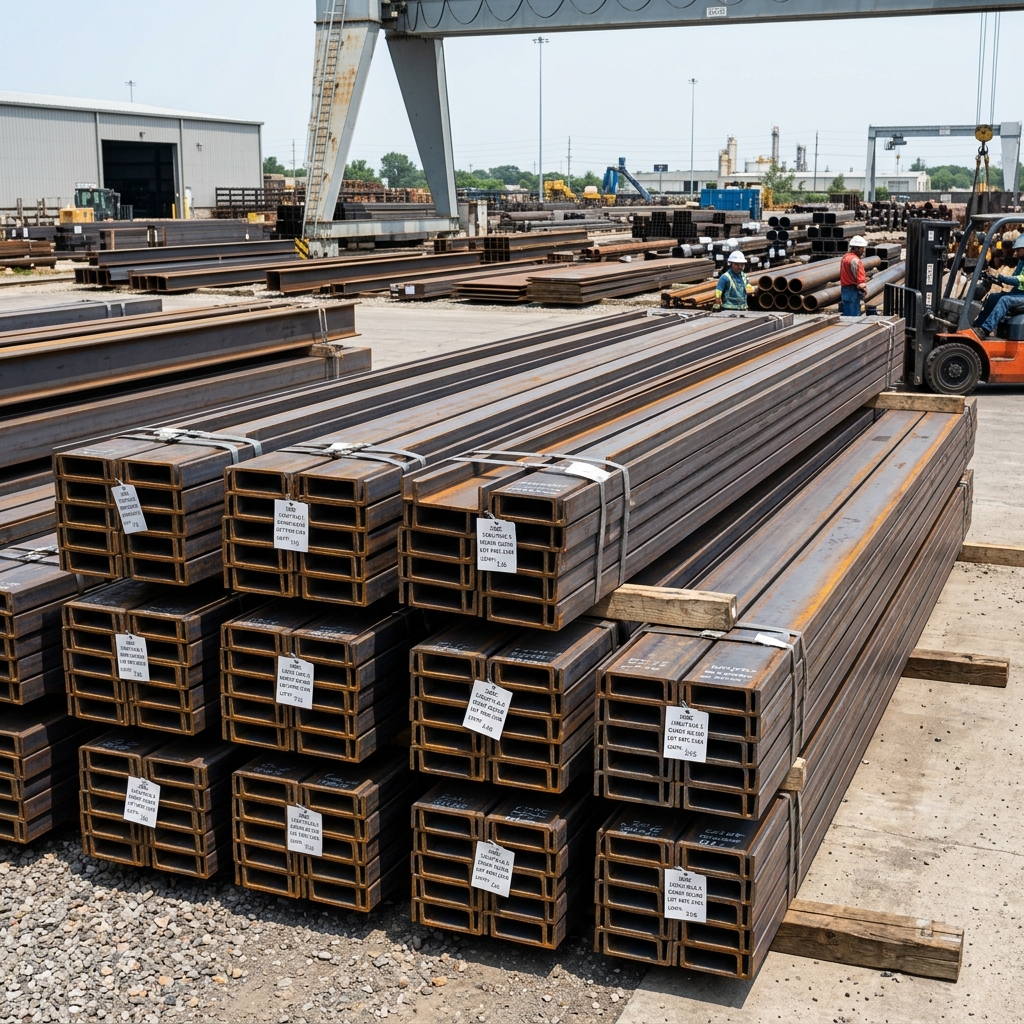

Extensive Yard Inventory
75x35 to 400x100mm channels ready in prime stock in Raipur.
Wholesale Mill Rates
Competitive commercial pricing with transparent weighbridge billing.
PAN-India Dispatch
Prompt multi-axle freight loading with on-time delivery tracking.
Mild Steel Channels (ISMC) Dimensions & Weight Table
Complete weight specifications table per meter for Mild Steel Channels (ISMC / IS 2062 grade).
Mild Steel Channels Size & Weight Chart
ISMC Standard Sizes| Size in mm | Category | Weight in Kgs / Mtr | Depth (mm) | Flange Width (mm) | Instant Quote |
|---|---|---|---|---|---|
| 75 x 35 mm (Gate Channel) | Light / Gate | 5.50 | 75 mm | 35 mm | |
| ISMC 75 x 40 mm | Medium Structural | 7.14 | 75 mm | 40 mm | |
| 100 x 40 mm (Gate Channel) | Light / Gate | 7.50 | 100 mm | 40 mm | |
| ISMC 100 x 50 mm | Medium Structural | 9.56 | 100 mm | 50 mm | |
| ISMC 125 x 65 mm | Medium Structural | 13.10 | 125 mm | 65 mm | |
| ISMC 150 x 75 mm | Medium Structural | 16.80 | 150 mm | 75 mm | |
| ISMC 175 x 75 mm | Medium Structural | 19.60 | 175 mm | 75 mm | |
| ISMC 200 x 75 mm | Heavy Structural | 22.30 | 200 mm | 75 mm | |
| ISMC 200 x 75 mm (Heavy) | Heavy Structural | 24.20 | 200 mm | 75 mm | |
| ISMC 225 x 80 mm | Heavy Structural | 26.10 | 225 mm | 80 mm | |
| ISMC 250 x 82 mm | Heavy Structural | 30.40 | 250 mm | 82 mm | |
| ISMC 250 x 82 mm (Heavy) | Heavy Structural | 34.20 | 250 mm | 82 mm | |
| ISMC 300 x 90 mm | Heavy Structural | 36.30 | 300 mm | 90 mm | |
| ISMC 350 x 100 mm | Heavy Structural | 42.10 | 350 mm | 100 mm | |
| ISMC 400 x 100 mm | Heavy Structural | 50.10 | 400 mm | 100 mm |
Complete Guide to Mild Steel Channels (ISMC)
Mild Steel Channels, also widely designated as ISMC (Indian Standard Medium Weight Channels) or C-Channels, are hot-rolled structural steel sections characterized by an interior web flanked by two perpendicular tapered flanges. Their unique structural geometry delivers exceptional resistance to bending moments, shear forces, and twisting loads while maintaining lightweight material efficiency.
At Mildsteelchannel.com, we are proud stockists, suppliers, and exporters of prime IS 2062 Grade E250 / E350 Mild Steel Channels. Available in sizes spanning from 75x35 mm gate channels up to heavy-duty ISMC 400x100 mm beams, our products are rigorously tested for mechanical durability, strict chemical tolerances, and uniform dimensional stability.

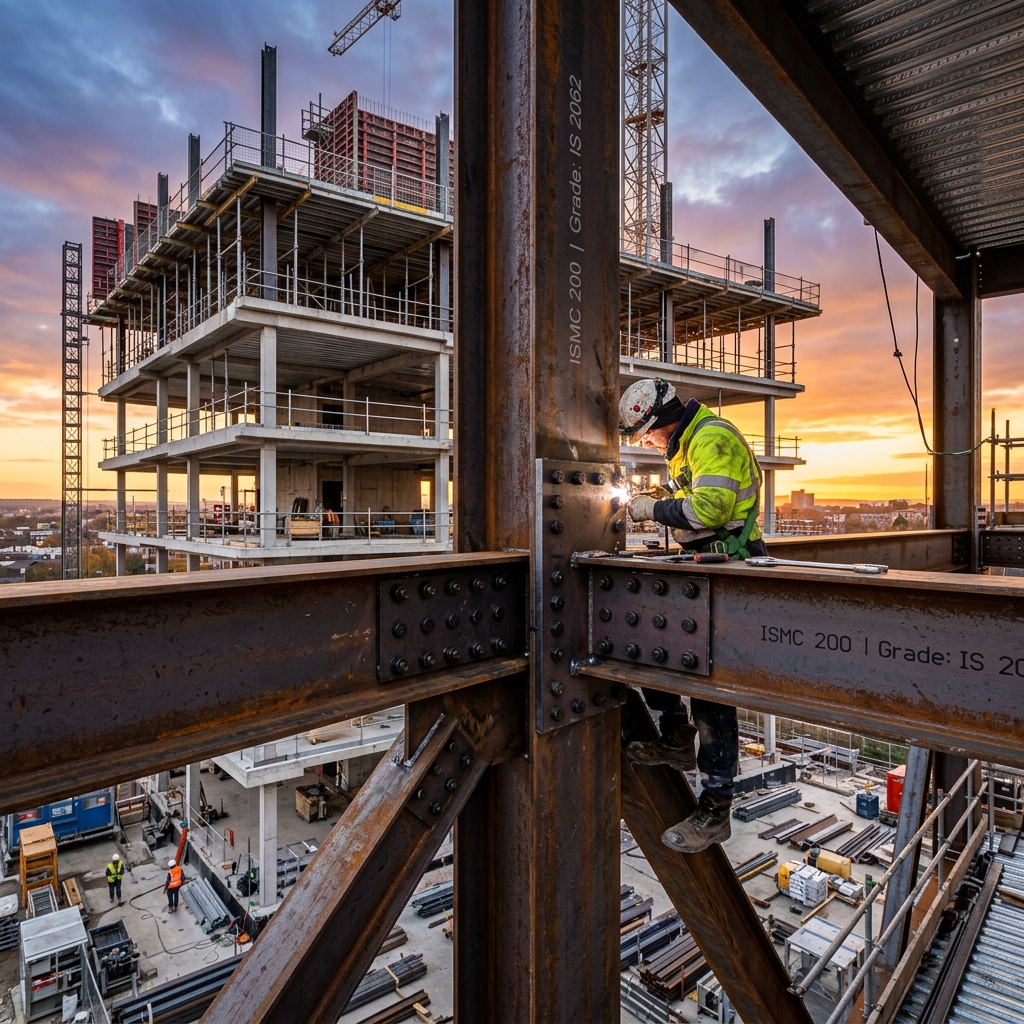

Pre-Engineered Buildings (PEB)
Used extensively as purlins, side girts, roof trusses, and framing columns for industrial sheds and warehouses.
Vehicle Body & Chassis
Primary longitudinal and cross-members for commercial trailers, truck beds, dumper chassis, and agricultural equipment.
Solar Mounting Systems
Structural support tables and foundation purlins for utility-scale solar photovoltaic installations.
Bridges & Heavy Machinery
Heavy structural support in material handling conveyors, overhead crane gantries, and bridge walkways.
Mild Steel Channel Weight Calculation Formula
The nominal weight of any Mild Steel Channel is governed by its cross-sectional area and steel density (approx. 7,850 kg/m³ or 0.00785 g/mm³). The standard formula for estimating unit weight per meter is:
Weight (kg/m) = [ (2 × Flange Width × Flange Thickness) + ( (Web Height − 2 × Flange Thickness) × Web Thickness ) ] × 0.00785
For certified structural fabrication, engineers rely directly on our standard ISMC Weight Chart above, which reflects factory rolled tolerances under IS 2062 specifications.
Frequently Asked Questions
Key technical and commercial answers regarding Mild Steel Channels & ISMC specifications.
MS Channel is a broad term for all Mild Steel C-shaped sections. ISMC stands specifically for Indian Standard Medium Weight Channel, which is governed by the Bureau of Indian Standards (BIS) standard IS 808 / IS 2062 for standardized dimensions, root radii, and section weight.
Our standard rolling mill lengths are 6 meters and 12 meters. Custom fixed lengths and cut-to-size consignments can also be supplied for bulk commercial orders to minimize site scrap.
Yes, all prime shipments are accompanied by official manufacturer Mill Test Certificates (MTC) detailing complete chemical composition (C, Mn, S, P) and mechanical testing results (Yield Strength, Tensile Strength, Elongation).
You can directly contact our sales team at +91 9009272007 / 0771-4007433 or send your requirement list to jmdtradingco.99@gmail.com for an instant rate sheet with freight estimate.
As per IS 2062 and IS 1852 standards, rolling weight tolerances are typically within ±2.5% to 5%. Invoicing is calculated strictly on computer-certified weighbridge slips generated at dispatch.
Ready to Place Your Order for Mild Steel Channels?
Connect directly with our Raipur sales desk for immediate price quotations, bulk project discounts, and swift logistics across India.
